Industrial Equipment Miniature Tactile Switch Copper Terminal With Metal Cover

Name: Industrial Equipment Miniature Tactile Switch Copper Terminal With Metal Cover
Brand: BZCN
Price: 1 USD

Wholesale Industrial Equipment Miniature Tactile Switch Copper Terminal With Metal Cover from china suppliers

Brand Name : BZCN

Model Number : TS-F001

Certification : SGS

Place of Origin : CHINA

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000000 pcs per week

Delivery Time : 3 workdays

Packaging Details : 1000 pcs per bag

Case color : Orange

Button : White / Black

Current rate : 0.5mA

Voltage : 12v

Cover : Plastic

Terminal : Copper

Contact Now

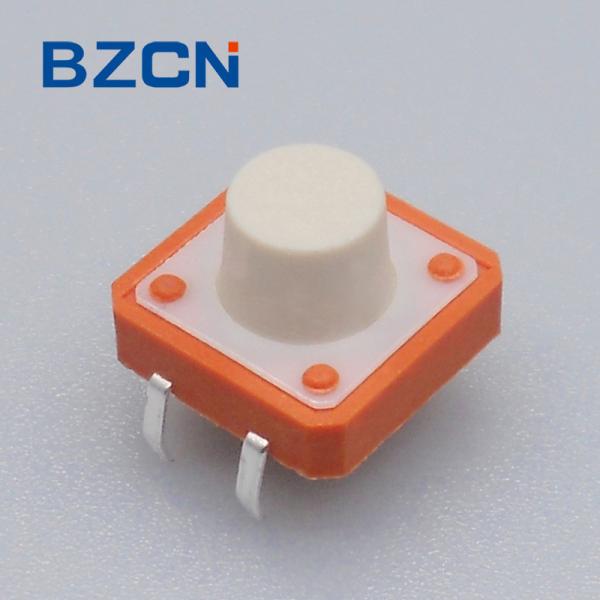

black / white button 12 mm x 12 mm thru hole tactile switch 4 pins terminal with metal cover

12mm x 12mm thru hole tactile switch multiple operating force options allows it to be applied to many industries: telecommunications, consumer electronics, medical, testing/instrumentation, computer/servers/peripherals and audio/visual.

Applications

●Switches for car audio-visual and navigation systems, steering wheels
　and other automotive equipment
●Industrial equipment and measuring instruments

Spec.

Model No.		TS-F001
Terminal Type		DIP
Switch Rating		50mA DC 12V
Operation Travel		0.2±0.1mm
Operation Tpye		Momentary
Operation Force		160/180/250 gf
Operation Life		300,000 Cycles
Contact Resistance		≤100mΩ max
Insulation Resistance		≥100MΩ/m DC 250V
Dielectric Strength		AC 250V/m 50Hz
Operation Temperature		-30℃ to + 85℃
Operation Humidity		25-85% RH
Solder Ability		260±5℃ for 3 seconds

Reference:

Industrial Equipment Miniature Tactile Switch Copper Terminal With Metal Cover

Product Tags:

micro tactile switch

waterproof touch switch

Industrial Equipment Miniature Tactile Switch Copper Terminal With Metal Cover Images
